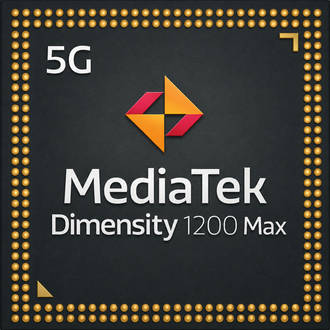

MediaTek Dimensity 1200 Max
+ CompareMediaTek Dimensity 1200 Max is a Budget 8 core chipset launched in January, 2021, manufactured using a 6 nm process technology. MediaTek Dimensity 1200 Max has 1 core Cortex A78 at 3 GHz, 3 cores Cortex A78 at 2.6 GHz, and 4 cores Cortex A55 at 2 GHz.
Key Specs
- CPU: Octa core (3 GHz, Single Core + 2.6 GHz, Tri core + 2 GHz, Quad core)
- Process Node: 6 nm
- GPU: Mali-G77 MP9, 886 MHz
- Memory Type: LPDDR4X
See Full Specs
Similar SoCs
MediaTek Dimensity 1200 Max Specifications
General |
|
|---|---|
| SoC Brand | MediaTek |
| Title | MediaTek Dimensity 1200 Max |
| Model No | MT6893 |
| Manufacturing | TSMC |
CPU |
|
|---|---|
| Total Cores | Octa core |
| CPU | Octa core (3 GHz, Single Core, Cortex A78 + 2.6 GHz, Tri core, Cortex A78 + 2 GHz, Quad core, Cortex A55) |
| Architecture | 64 bit |
| Process Node | 6 nm |
| Instruction Set | ARMv8.2-A |
| L1 Cache | 32 KB |
| L2 Cache | 320 KB |
| L3 Cache | 8 MB |
GPU |
|
|---|---|
| GPU | Mali-G77 MP9 |
| GPU Clock speed | 886 MHz |
| Pipelines | 9 |
| Shading Units | 32 |
| Total Shaders | 288 |
| FLOPS | 510.3 Gigaflops |
| Vulkan Version | 1.3 |
| OpenCL Version | 2.0 FP |
AI |
|
|---|---|
| NPU | MediaTek APU 3.0 |
Memory |
|
|---|---|
| Memory Type | LPDDR4X |
| Memory Speed | 2.133 GHz |
| Bus | 4x16 Bit |
| Memory Max bandwidth | 34.1 Gb/s |
| Memory Max size | 16 GB |
| Storage Type | UFS 3.1 |
Camera |
|
|---|---|
| Max Camera Sensor Supported | 200 MP |
| Max Video Capture Resolution | UHD @ 60 FPS |
Display |
|
|---|---|
| Max On-Device Display Resolution | FHD+ |
Multimedia |
|
|---|---|
| Video Playback Resolution | UHD @ 60 FPS |
| Video Codecs | H.264, H.265, AV1, VP9 |
| Audio Codecs | AIFF, CAF, MP3, MP4, WAV |
Connectivity |
|
|---|---|
| Modem Name | Helio M70 |
| 5G Support | Yes |
| Peak Download Speed | Up to 4700 Mbps |
| Peak Upload Speed | Up to 2500 Mbps |
| Wi-Fi Version | 6 |
| Wi-Fi Standard | a, ac, ax, b, g, n, n 5GHz |
| Bluetooth Version | 5.2 |
| Navigation | BeiDou, Galileo, Glonass, GPS, NavIC, QZSS |
