When it comes to connectivity one standard has risen to prominence, becoming the cornerstone of high-quality audio and video transmission – the High-Definition Multimedia Interface, commonly known as HDMI. Since its introduction in 2002, HDMI has undergone several revisions, each bringing enhancements and new capabilities to meet the demands of advancing technology. In this article, we will delve into the intricacies of the HDMI standard, exploring its history, evolution, key features, and its vital role in delivering seamless, high-quality multimedia experiences.
Table of Contents
Quick history
Before HDMI, consumers dealt with a myriad of cables and connectors for transmitting audio and video signals. The emergence of high-definition content, coupled with the desire for a simplified, unified interface, paved the way for HDMI. Developed by a consortium of leading electronics manufacturers, including Sony, Philips, Toshiba, and Panasonic, HDMI was introduced in 2002 as a successor to analog video standards like VGA and component video.
HDMI promised a single cable solution capable of transmitting uncompressed, high-definition video and multi-channel audio, eliminating the need for multiple cables and simplifying the home entertainment setup. This breakthrough made HDMI a game-changer, quickly becoming the de facto standard for connecting devices in the consumer electronics realm.
Evolution of the HDMI standard
Since its inception, HDMI has undergone multiple revisions, with each iteration bringing improvements in terms of bandwidth, audio capabilities, and support for emerging technologies. Let’s explore the major versions of the HDMI standard:
HDMI 1.0 – The initial version, HDMI 1.0, was introduced in 2002. It supported a maximum bandwidth of 4.95Gbps, allowing it to transmit 1080p video and up to eight channels of audio. HDMI 1.0 laid the foundation for the future development of the standard.
HDMI 1.3 – Released in 2006, HDMI 1.3 increased the maximum bandwidth to 10.2Gbps. This version introduced support for Deep Color, enabling a broader range of colours and improved colour reproduction. Additionally, HDMI 1.3 brought forth features like Dolby TrueHD and DTS-HD Master Audio for high-definition audio formats.

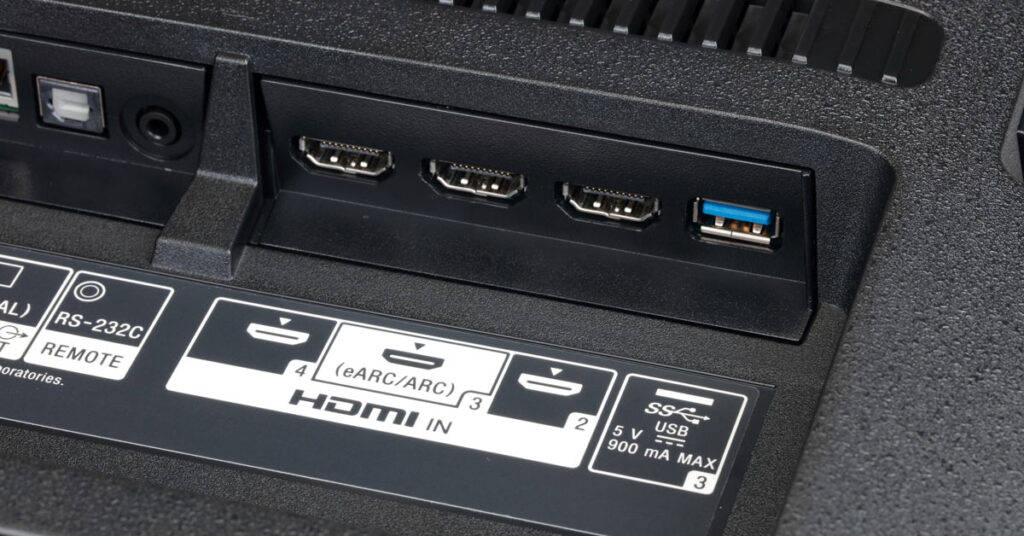

HDMI 1.4 – In 2009, HDMI 1.4 arrived with support for 3D content, an Audio Return Channel (ARC) for sending audio from the TV back to the A/V receiver, and an Ethernet channel for incorporating network capabilities into HDMI. This version was a response to the growing popularity of 3D displays and the increasing integration of internet-enabled devices.
HDMI 2.0 – Unveiled in 2013, HDMI 2.0 addressed the demands of Ultra High Definition (UHD) content. With a maximum bandwidth of 18Gbps, HDMI 2.0 could handle 4K resolution at 60 frames per second. This version also introduced support for wider colour gamuts and dynamic refresh rates, enhancing the overall visual experience.
HDMI 2.1 – The latest major revision, HDMI 2.1, was introduced in 2017. This version marked a significant leap in terms of bandwidth, supporting up to 48Gbps. HDMI 2.1 enabled resolutions of up to 10K, higher frame rates (up to 120Hz), and advanced features like Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), catering to the needs of gamers and enthusiasts.
What are the different HDMI connector types?
HDMI encompasses five connector types, all delineated in the 1.x specifications. Type A and Type B were established in HDMI 1.0, Type C in HDMI 1.3, and Types D and E in HDMI 1.4:
Type A: The standard connector, widely utilised among the five HDMI types, featuring 19 pins.
Type B: Developed for high-resolution displays with 21 pins, this dual-link connector is electronically compatible with single-link DVI-D. However, it has become obsolete due to the HDMI 1.3 specification surpassing the bandwidth of dual-link DVI-D.
Type C: A mini connector maintaining the 19-pin configuration and supporting the same features as Type A but in a smaller, compact form. Primarily designed for portable devices like cameras and tablets.
Type D: The micro connector, shares functionalities with Types A and C but with approximately half the width of Type C. Commonly found in small, portable devices such as phones. While using 19 pins, the pin assignment differs from Types A and C, resembling micro-USB connectors.
Type E: An Automotive Connection System (ACS) designed for in-vehicle use, it incorporates a locking tab to secure the cable against vibrations and a shell to prevent interference from moisture and dirt.
HDMI vs DisplayPort
Just like HDMI, DisplayPort is a widely used display interface standard, with distinct features and applications. HDMI is a popular choice among consumer electronics and supports high resolutions and audio formats, making it a popular choice for home entertainment setups. The latest HDMI 2.1 standard includes gaming-centric features like Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM).
DisplayPort, on the other hand, is more common in the computer industry and excels in adaptability, supporting daisy-chaining and higher bandwidths, as seen in DisplayPort 2.0. Both interfaces have their strengths, with HDMI dominating in consumer electronics and DisplayPort being favoured in computer-related applications. The choice between them depends on factors such as device compatibility, desired resolutions, and specific use cases. As technology advances, both standards are likely to evolve to meet the demands of increasingly sophisticated display technologies.
Key Features of HDMI
High bandwidth: One of the defining features of HDMI is its ability to transmit high-bandwidth signals, facilitating the transmission of high-definition video and audio.
Audio support: HDMI carries not only video signals but also multiple channels of high-quality audio. This includes support for formats like Dolby Atmos and DTS:X, delivering immersive sound experiences.
CEC (Consumer Electronics Control): HDMI supports Consumer Electronics Control, allowing interconnected devices to be controlled with a single remote. This feature simplifies the user experience by enabling seamless control of multiple devices through a single remote control.
HDCP (High-Bandwidth Digital Content Protection): To prevent unauthorised copying of high-definition content, HDMI incorporates HDCP, ensuring secure transmission of protected content between devices.
Backward compatibility: HDMI maintains backward compatibility, allowing users to connect devices with different HDMI versions. However, to fully utilise the capabilities of the latest HDMI version, all devices in the chain must support that version.
Role of HDMI in devices
HDMI is ubiquitous in modern TVs and monitors, serving as the primary interface for connecting external devices such as Blu-ray players, gaming consoles, and streaming devices.
Gaming consoles: HDMI has become the standard for connecting gaming consoles to TVs and monitors, supporting high resolutions, fast refresh rates, and advanced gaming features like Variable Refresh Rate (VRR).
Home theatre systems: HDMI simplifies home theatre setups by carrying both audio and video signals between components like AV receivers, Blu-ray players, and soundbars.

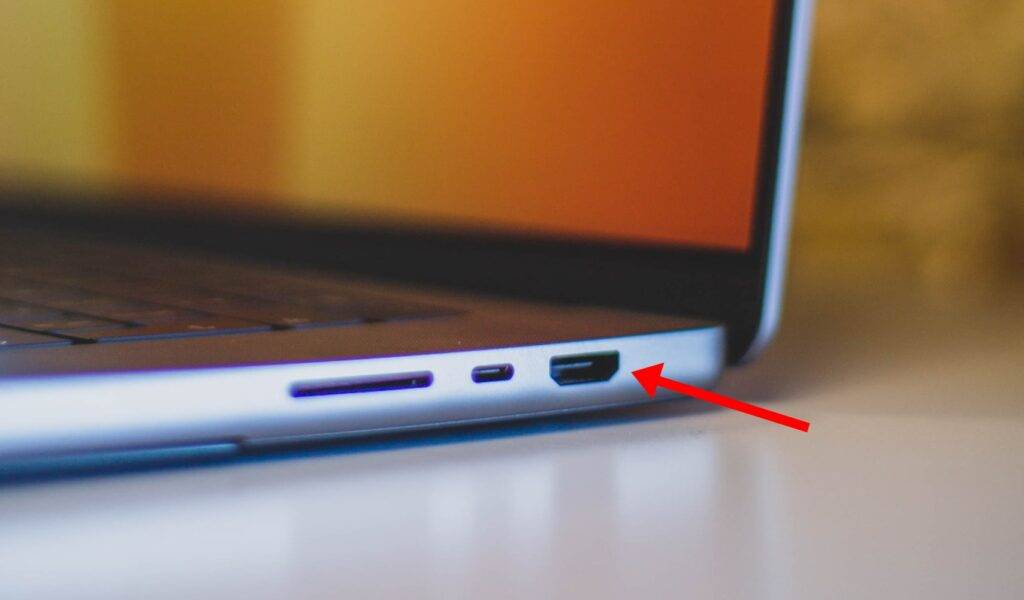

Personal computers: Many desktops and laptops come equipped with HDMI ports, enabling users to connect external displays and projectors for presentations or extended desktop setups.
Cameras and camcorders: HDMI is commonly used in cameras and camcorders for displaying content on larger screens, such as TVs or monitors, during playback or live streaming.
Challenges and future trends
While HDMI has undoubtedly revolutionised the way we connect and experience audio-visual content, it faces certain challenges and is likely to evolve further to meet emerging needs:
Bandwidth demands: With the advent of technologies like 8K resolution and higher frame rates, the demand for increased bandwidth continues to grow. Future iterations of HDMI will need to address these requirements to ensure seamless transmission of ultra-high-definition content.
Connectivity standards: As technology advances, alternative connectivity standards like USB-C and Thunderbolt gain traction. HDMI may need to adapt and coexist with these standards to maintain its relevance in the ever-changing landscape of digital connectivity.
Wireless HDMI: The proliferation of wireless technologies raises the possibility of wireless HDMI solutions becoming more widespread. While traditional HDMI cables are still prevalent, wireless alternatives could offer greater flexibility and convenience in certain scenarios.
From its humble beginnings in 2002 to its current status as a fundamental component of modern home entertainment and computing, HDMI has come a long way. The standard’s ability to adapt to the evolving demands of the digital era, supporting higher resolutions, advanced audio formats, and gaming features, has solidified its position as the go-to interface for multimedia connectivity.
As we look ahead, HDMI is likely to continue evolving to meet the ever-increasing demands of consumers and the rapidly advancing landscape of audio-visual technology. Whether it’s pushing the boundaries of resolution, enhancing gaming experiences, or simplifying connectivity in our homes, HDMI remains a crucial element in our daily digital lives.
