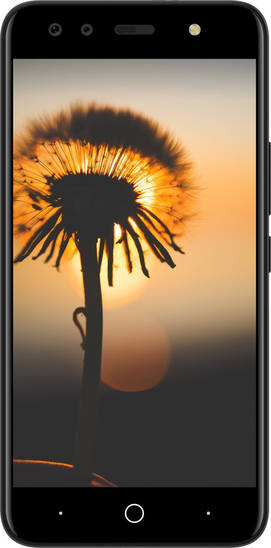

Karbonn Frames S9

+ Compare
62%
View All Photos (5)
₹9,500 (Last Known Price)
Karbonn Frames S9 is permanently discontinued.

Key Specs

Android v7 (Nougat)

Performance

(Below Avg)
  • MediaTek MT6737M
  • Quad Core, 1.25 GHz
  • 2 GB RAM

Display

(Excellent)
  • 5.2 inches (13.21 cm); IPS LCD
  • 720x1280 px (HD)

Rear Camera

(Below Avg)
  • Single Camera Setup
    • 8 MP Primary Camera
  • LED Flash

Front Camera

(Good)
  • 8 MP + 8 MP
  • LED Flash

Battery

(Very Good)
  • 2900 mAh

General

  • 5G Not Supported
  • 16 GB internal storage, Expandable upto 32 GB
Add To Compare See Full Specs

Competitors For Karbonn Frames S9

View Alternatives

Karbonn Frames S9 Specifications

General Performance Display Design Rear Camera Front Camera Battery Storage Network & Connectivity Multimedia Sensors

General

Operating System Android v7.0 (Nougat)

Performance

(Below Avg)
Chipset MediaTek MT6737M
Processor Quad core, 1.25 GHz, Cortex A53
Graphics (GPU) Mali-T720 MP1
RAM 2 GB

Display

(Excellent)
Display Type IPS LCD
Screen Size 5.2 inches (13.21 cm)
Resolution 720x1280 px (HD)
Aspect Ratio 16:9
Pixel Density 282 ppi
Screen to Body Ratio (calculated) 69.6 %

Design

Height 148.4 mm
Width 72 mm
Thickness 7.8 mm
Weight 139 grams

Rear Camera

(Below Avg)
Resolution
CameraMP
Primary8 MP
Autofocus Yes
Flash Yes, LED Flash
Image Resolution 3264 x 2448 Pixels
Camera Features Digital Zoom
Auto Flash
Face detection
Touch to focus

Front Camera

(Good)
Resolution
CameraMPAperture
Primary8 MPf/2.2
Secondary8 MP
Flash Yes, LED Flash

Battery

(Very Good)
Capacity 2900 mAh
Battery Type Li-Polymer
TalkTime Up to 10 Hours(3G)

Storage

Internal Storage 16 GB
Expandable Storage Yes, Up to 32 GB

Network & Connectivity

SIM Slot(s) Dual SIM
Network Support 5G Not Supported, 4G
VoLTE Yes
SIM 1 4G bands
Expand
Bands Features
4G bandsTD-LTE 2300(band 40)
FD-LTE 2100(band 1) / 1800(band 3) / 850(band 5)
Wi-Fi Yes, Wi-Fi 4 (802.11 b/g/n)
Wi-Fi Features Mobile Hotspot
Bluetooth Yes
GPS Yes with A-GPS
NFC No

Multimedia

Audio Jack 3.5 mm

Sensors

Fingerprint Sensor Yes
Fingerprint Sensor Position Rear
Other Sensors Light sensor, Proximity sensor, Accelerometer

Karbonn Frames S9 User Reviews

4/5
Based on 376 ratings

Karbonn Frames S9 Key Highlights

Processor MediaTek MT6737M
RAM & Storage 2 GB + 16 GB
Display 5.2", 720 x 1280 Resolution
Rear Camera 8 MP
Front Camera 8 MP + 8 MP
Battery 2900 mAh
